Description
Standard: EN 1426, ASTM D5,AASHTO T49

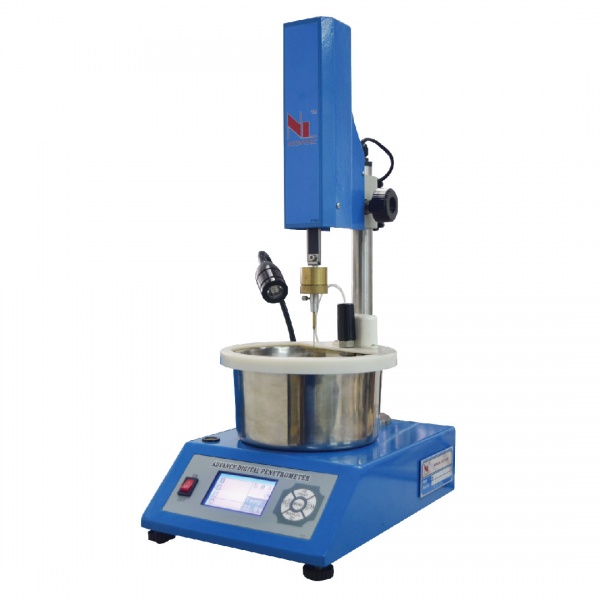

Advance Digital Penetrometer NL 2001 X / 007
Penetration of Bituminous Materials
NL upgraded version FULLY AUTOMATIC apparatus to determine the consistency of sample from the depth penetration thru penetration needle under standard load condition.
Digital Penetrometer NL 2001 X / 005
Penetration of Bituminous Materials
Newly invented instrument for determine the consistency of sample from the depth penetration thru penetration needle under standard load condition.
Features
Advance Digital Penetrometer NL 2001 X / 007
FEATURES:-
*Light weight with compact design
*Automated record penetration result
*High accuracy using measuring transducer
*Enable auto or manual test operation
*LED lighting stand
*Levelling bubble & vertical fine adjustable knob
*Large LED screen with multiple control keypad
*Multiple function communication port
*Selectable penetration timing 5S,15S,30S & 60 S
Optional Unique Features:-

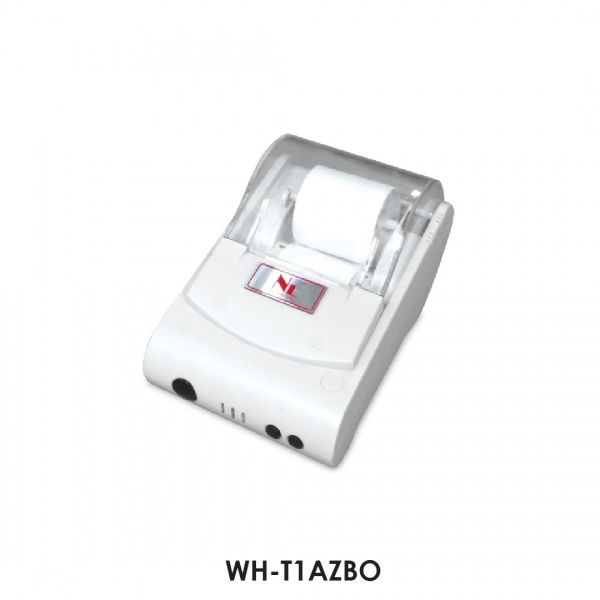

*Enable connected to mini printer for instant result with average test result

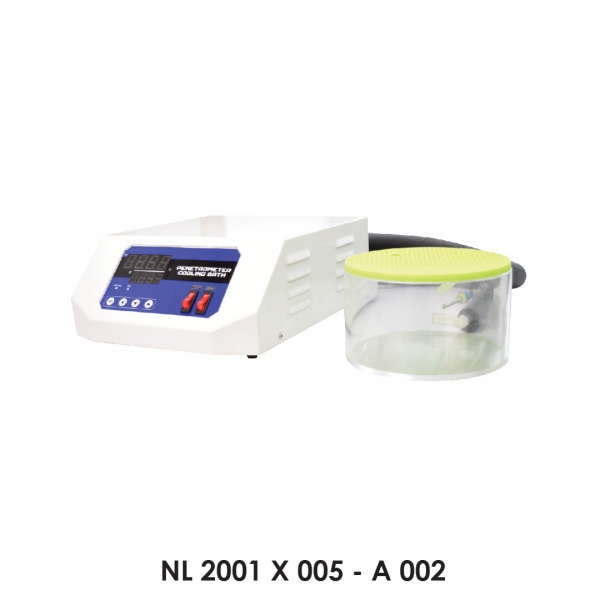

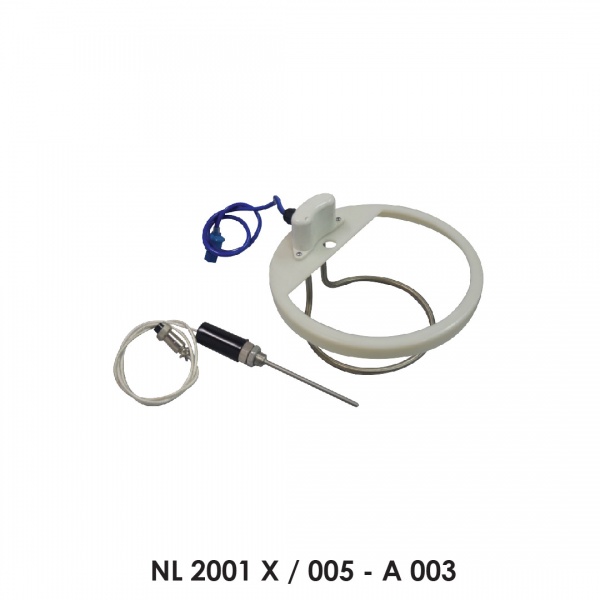

*Enable to test in various weather condition by adding transfer disc and heating element
Digital Penetrometer NL 2001 X / 005
FEATURES:-
*Light weight with compact design
*Automated record penetration result
*High accuracy using digital measuring device
*Enable auto or manual test operation
*LED lighting stand
*Levelling bubble & vertical fine adjustable knob
*Simple & quick operation
Tech Spec
Advance Digital Penetrometer NL 2001 X / 007
| Model Number | NL 2001 X / 007 |
|---|---|
| Penetration Depth & Displayed Unit | 40 x 0.01 mm |
| Product Dimension (mm) | 310 (L) x 210 (W) x 450 (H) |
| Packing Dimension (mm) | 330 (L) x 230 (W) x 510 (H) |
| Approx. Product Weight | 6.5 kg |
| Approx. Packing Weight | 7.5 kg |
| Power | 220 – 240 V, 1 ph, 50 / 60 Hz |
Digital Penetrometer NL 2001 X / 005
| Model Number | NL 2001 X / 005 |
|---|---|
| Penetration Depth & Displayed Unit | 40 x 0.01 mm |
| Spindle Weight | 47.5 ± 0.05 |
| Product Dimension (mm) | 310 (L) x 210 (W) x 480 (H) |
| Packing Dimension (mm) | 330 (L) x 230 (W) x 510 (H) |
| Approx. Product Weight | 6.5 kg |
| Approx. Packing Weight | 7.5 kg |
| Power | 220 – 240 V, 1 ph, 50 / 60 Hz |
Standard
Test Procedure
Resources
Advance Digital Penetrometer NL 2001 X / 007
PRODUCT VIDEO
HOW TO OPERATE VIDEO
