Description
Standard: EN 13398, ASTM D113, AASHTO T51
Ductilometer Apparatus, Advance Digital NL 2006 X / 003A
Ductilometer Apparatus
Ductilometer Apparatus is used to determine the ductility of a material such as asphalt, bitumen, and certain types of metals. Ductility is the ability of a material to deform under tensile stress (pulling forces) without fracturing which evaluates the properties of materials used in construction, paving, and infrastructure projects. In the context of asphalt and bitumen testing, a ductilometer measures the elongation properties of these materials under specific conditions, typically at elevated temperatures.
The Ductilometer Apparatus consists of a bath or chamber where the sample is heated to a controlled temperature, usually around 50 to 60 degrees Celsius for asphalt. A test specimen of the material is pulled apart at a constant rate using a mechanical system, and the elongation before rupture is measured. This elongation measurement indicates the ductility of the material.
Ductility testing is crucial in assessing the suitability of materials for various applications, such as road construction, where the asphalt needs to withstand deformation and stretching without breaking under traffic loads and temperature fluctuations. This advanced apparatus incorporates cutting-edge technology and features to provide accurate, reliable, and efficient testing capabilities.
Ductilometer Apparatus, Tension (Load Series), Advance Digital NL 2006 X / 004
Ductilometer Apparatus, Tension Load

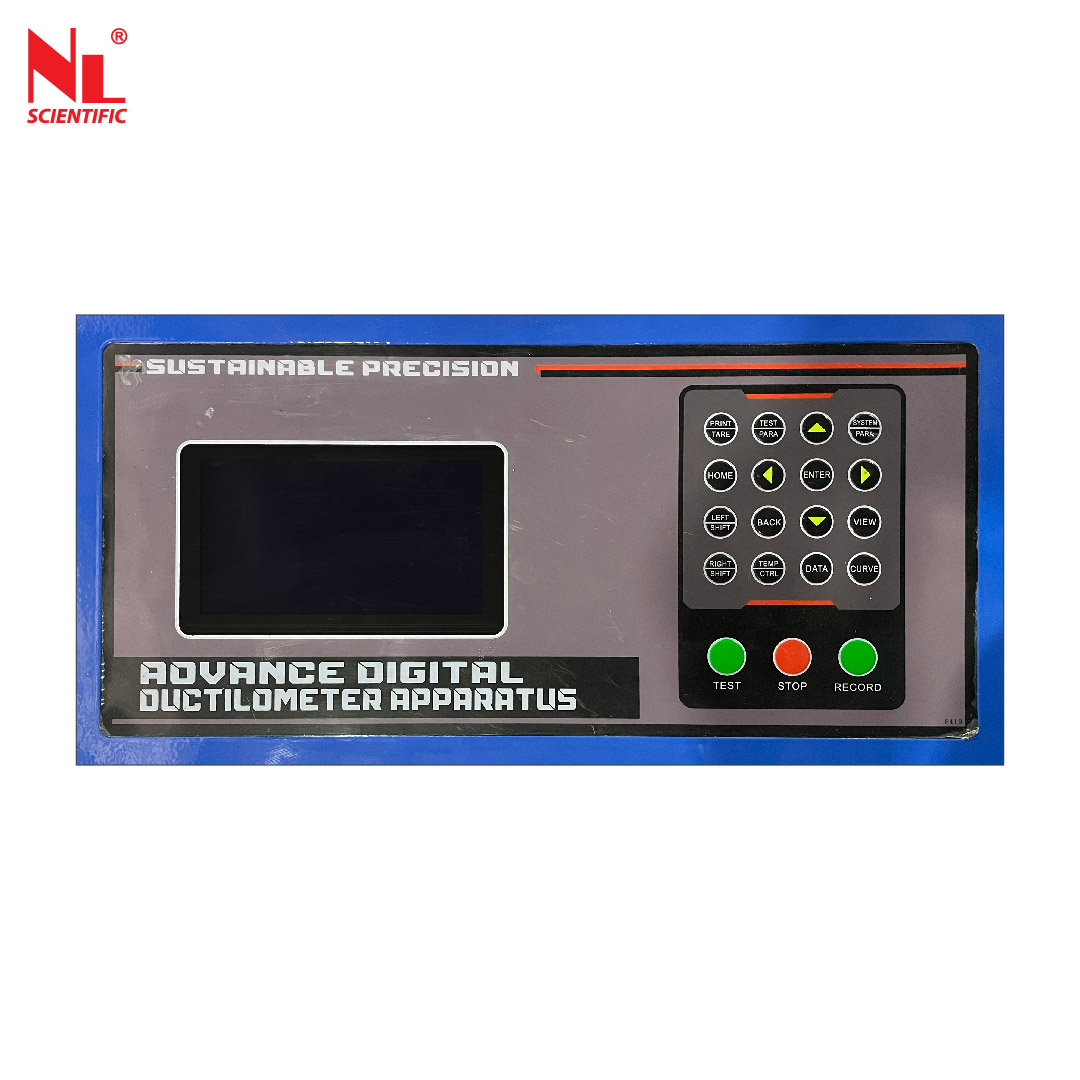

The Ductilometer Apparatus, Tension Load assesses material ductility crucial for construction and engineering. Controlled tensile forces are applied, gradually increasing stress levels to observe the material’s response. Parameters like force and displacement are monitored via the digital interface, enabling precise measurement. This test provides valuable insights into material behavior under tension, aiding in informed decision-making for material selection and design. Overall, it’s a vital tool for ensuring quality and innovation in construction and engineering applications.
Features
Ductilometer Apparatus, Advance Digital NL 2006 X / 003A
Features of Ductilometer Apparatus, Advanced Digital
- Double speed setting for elongation movement
- High-accuracy LED test parameter
- Using double ball screw with servo motor for uniform movement
- Save up to 10 groups of test result

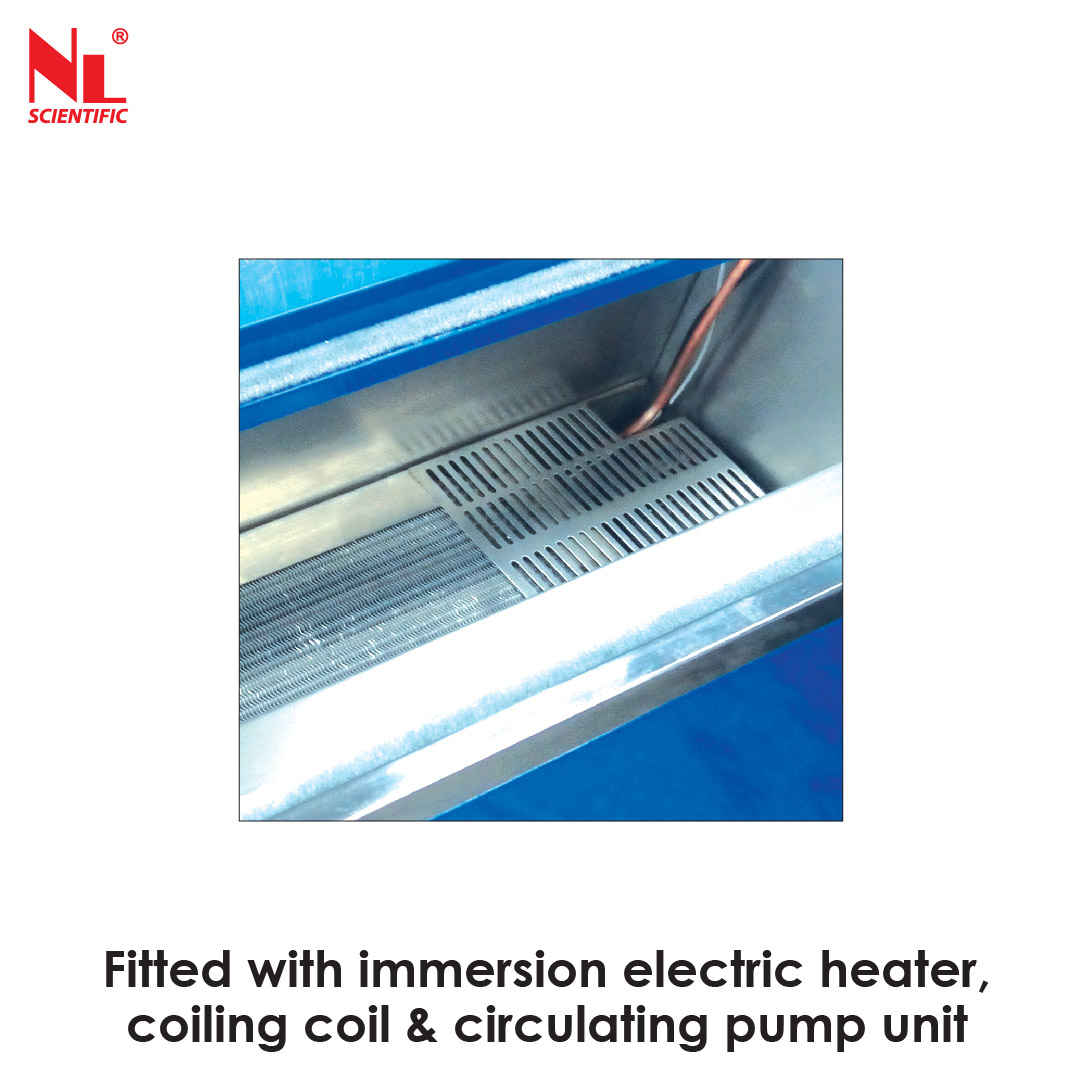

- Fitted with immersion electric heater, coiling coil & circulating pump unit

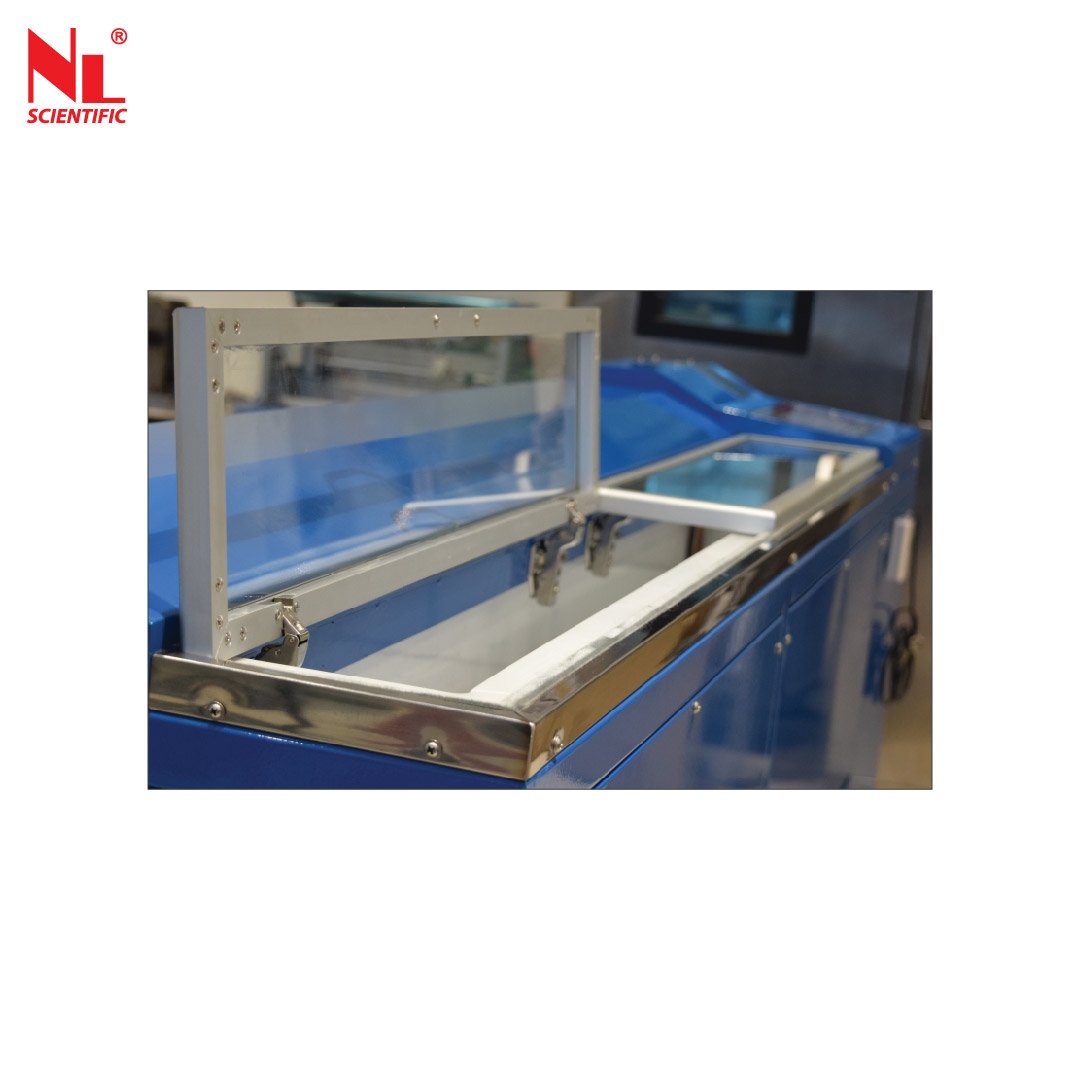

- Tank Glass Cover upgraded to mechanism folding cover
Ductilometer Apparatus, Tension (Load Series), Advance Digital NL 2006 X / 004
Features of Ductilometer Apparatus, Tension (Load Series), Advanced Digital
- 2 speed setting for elongation movement.
- High accuracy LED test parameter.
- Using double ball screw with servo motor for uniform movement.
- Save up to 10 groups’ test results.
- Fitted with an immersion electric heater, coiling coil & circulating pump unit.
- Built-in Mini printer for instant print out 3 groups average test result.
- 1000N (Newton Load Cell with Mould Guide Piece).
Tech Spec
Ductilometer Apparatus, Advance Digital NL 2006 X / 003A
Technical Specifications:
| Model Number | NL 2006 X / 003A |
|---|---|
| Max. Carriage Displacement | 1500 mm |
| Displacement Accuracy | 1 mm |
| Temperature Range | 2 – 40°C |
| Temperature Accuracy | ±0.1°C |
| Test Speed | 10 or 50 mm / min |
| Cooling Power | 1200 W |
| Heating Power | 4200 W |
| Nos. of Specimen Carriage | Max 3 nos. |
| Product Dimension | 2120 (L) x 440 (W) x 970 (H) mm |
| Packing Dimension | 2130 (L) x 5400 (W) x 1200 (H) mm |
| Approx. Product Weight | 158 kg |
| Approx. Packing Weight | 170 kg |
| Power | 220 – 240 V, 1 ph, 50 / 60 Hz |
Unit Consists Of:
| Model Number | Parts Description |
|---|---|
| NL 2006 X / 003 – P 001 | Handheld Distance Remote Control |
Optional Accessories
| Model Number | Accessories Description |
|---|---|
| NL 2006 X / 002 – A 001 | Briquette Mould c/w Base Plate (ASTM D113) |
| NL 2006 X / 002 – A 002 | Briquette Mould c/w Base Plate (ASTM D6084) |
| NL 2006 X / 002 – A 003 | Briquette Mould c/w Base Plate (EN 13398) |
| NL 2006 X / 002 – A 004 | Briquette Mould c/w Base Plate (EN 13589) |
| NL UTP | Universal Thermo Printer |
| NL TPR – 57 | Thermo Paper Roll 57mm x 31mm Dia. (5 rolls/pack) |
Ductilometer Apparatus, Tension (Load Series), Advance Digital NL 2006 X / 004
| Model Number | NL 2006 X / 004 |
|---|---|
| Max. Carriage Displacement | 1500 mm |
| Displacement Accuracy | 1 mm |
| Temperature Range | 5 – 40°C |
| Temperature Accuracy | ±0.1°C |
| Test Speed | 10 x 50 mm/min |
| Tension Load | 1000 N (Newton) |
| Cooling Power | 1200 W |
| Heating Power | 3800 W |
| Nos. of Specimen Carriage | Standard & 1 with load cell |
| Product Dimension | 2120 (L) x 440 (W) x 970 (H) mm |
| Packing Dimension | 2130 (L) x 5400 (W) x 1200 (H) mm |
| Approx. Product Weight | 158 kg |
| Approx. Packing Weight | 170 kg |
| Power | 220 – 240 V, 1 ph, 50 / 60 Hz |
Unit Consist Of:
| Model Number | Parts Description |
|---|---|
| NL 2006 X / 004 – P001 | 1000N Load Cell Mould Guide Piece |
| NL 2006 X / 003 – P 001 | Handheld Distance Remote Control |
| NL 2006 X / 003 – P 002 | Tank Glass Cover |
| NL 2006 X / 004 – P 002 | Master Controller Board w/Built-in Printer |
Optional Accessories
| Model Number | Accessories Description |
|---|---|
| NL 2006 X / 002 – A 001 | Briquette Mould c/w Base Plate (ASTM D113) |
| NL 2006 X / 002 – A 002 | Briquette Mould c/w Base Plate (ASTM D6084) |
| NL 2006 X / 002 – A 003 | Briquette Mould c/w Base Plate (EN 13398) |
| NL 2006 X / 002 – A 004 | Briquette Mould c/w Base Plate (EN 13589) |
| NL TPR – 57 | Thermo Paper Roll 57mm x 31 mm Dia. (5 rolls / pack) |
Standard
Standard: EN 13398, ASTM D113, AASHTO T51
Ductilometer Apparatus, Advance Digital NL 2006 X / 003A
EN 13398
EN 13398 is a European Standard that specifies the requirements and methodologies for testing bitumen and bituminous binders, which are crucial materials used in road construction and maintenance. The standard encompasses a range of test methods designed to assess the characteristics and performance of bitumen and bituminous binders comprehensively. The standard also addresses quality assurance measures, including equipment calibration, sample preparation, and reporting guidelines, ensuring the reliability and consistency of test results. Compliance with EN 13398 is essential to ensure that bitumen and bituminous binders used in road construction meet specified performance requirements and quality standards, thereby contributing to the durability, safety, and longevity of road infrastructure.
ASTM D113
ASTM D113, established by ASTM, provides a standard method for evaluating the ductility of bituminous materials crucial for road construction. Using a ductilometer, the test measures the material’s ability to stretch without breaking under tension. This standard ensures consistent and reliable assessment of bituminous materials, vital for their application in transportation infrastructure.
AASHTO T51
AASHTO T51 is a standardized test method used to evaluate the penetration of bituminous materials, like asphalt binder. This test assesses the material’s consistency and hardness, crucial for road construction. By subjecting the heated sample to a standard needle under specific conditions, engineers measure the depth of penetration. This value guides decisions on material suitability for pavement applications, ensuring quality and durability in road infrastructure.
Ductilometer Apparatus, Tension (Load Series), Advance Digital NL 2006 X / 004
EN 13398
This European Standard outlines procedures for testing various properties of bituminous materials, including viscosity, penetration, softening point, ductility, elasticity, and adhesion. Compliance ensures materials meet specified performance requirements and quality standards within the European Union.
ASTM D113
Developed by the American Society for Testing and Materials (ASTM), this standard test method specifically focuses on the ductility of bituminous materials. It involves subjecting a sample material to controlled tensile forces to assess its ability to deform without fracturing.
AASHTO T51
This test method, established by the American Association of State Highway and Transportation Officials (AASHTO), evaluates the penetration of bituminous materials using a needle under specified conditions. It provides insight into the hardness or consistency of bituminous binders, aiding in material selection for road construction projects across North America.
Test Procedure
Ductilometer Apparatus, Advance Digital NL 2006 X / 003A
Test Procedure of Ductilometer Apparatus, Advanced Digital
- Preparation: Calibrate and set up the apparatus. Prepare the sample according to standards.
- Placement: Securely place the sample in the testing chamber.
- Setup: Input testing parameters like speed and temperature into the digital interface.
- Initiation: Start the test through the interface, ensuring everything is functioning.
- Testing: The apparatus applies controlled force to the sample. Monitor progress and collect data.
- Analysis: Use software to analyze collected data for insights into material ductility.
- Reporting: Prepare a concise report summarizing the procedure, results, and conclusions.
- Maintenance: Perform necessary maintenance post-testing for continued functionality.
Ductilometer Apparatus, Tension (Load Series), Advance Digital NL 2006 X / 004
Test Procedure of Ductilometer Apparatus, Tension (Load Series), Advanced Digital
- Preparation: Get the apparatus ready and prepare the sample material as per guidelines.
- Placement: Securely position the sample in the testing chamber to ensure accurate results.
- Setup: Input necessary test parameters such as speed and temperature into the digital interface for precise testing conditions.
- Start: Initiate the test through the digital interface, ensuring all systems are functioning correctly.
- Loading: The apparatus applies controlled forces to the sample, gradually increasing tension.
- Monitoring: Observe and record data including force and displacement during the testing process.
- Analysis: Utilize software tools to analyze the collected data, providing insights into the material’s behavior under tension.
- Report: Summarize the procedure, results, and any conclusions drawn from the analysis in a concise report.
- Maintenance: Perform any necessary maintenance tasks to keep the apparatus in optimal condition for future tests.
