Description
Standard: BS EN 10002-1, BS 5896, ISO 7500-1, ASTM A370, ASTM A1061/A
Tensile & Compression
Universal Testing Machine 1200kN Servo-Hydraulic (Multi Wire Steel Strand)
Universal Testing Machine 1200kN Servo-Hydraulic used for the mechanics property tests such as the tensile, bending, compression, etc to various metallic and non-metallic materials. The testers have been developed according to BS EN 10002-1, ISO 7500-1 & ASTM A370 “Metal Tensile Test Method” with the adoption of the electro-hydraulic servo control and electronic measurement. It can automatically process the test result for statistical purposes and print default or user-defined test reports.
Universal Testing Machine 1200kN uses the micro-computer automatic data collection and processing, real-time display of the test data and curves. It has functions such as unlimited storage of test results in the computer, printing the test results and curves, processing the batch test result report, managing the database, and so on. It also has a network interface. It can automatically seek the multiple technical parameters such as elastic module E upper yield strength ReH, lower yield strength REL, stipulated non-proportional elongation intensity Rr, tensile strength Rm, stipulated total elongation intensity Rt, yield point percentage elongation, etc.
NL 6000 Series UTM has features such as high precision, advantageous performance, high reliability, convenient operation, etc.
Operation Display of Universal Testing Machine 1200kN Servo-Hydraulic (Multi Wire Steel Strand)
Computer Screen Display unit with the following functions
- Test force display
- Break detection
- Full auto test range switching function
- Auto return function
- Peak / Break value display function
- Test conditions
Safety Features of Universal Testing Machine 1200kN Servo-Hydraulic (Multi Wire Steel Strand)
The system includes the following safety features
- Emergency stop switch
- Overload limiter
- Ram-stroke limiter
- Hydraulic pump motor over-current & overheating protection
- Leak / over current protection
- Automatic stop control
- Safety Guard
Control & Data Processing of Universal Testing Machine 1200kN Servo-Hydraulic (Multi Wire Steel Strand)
- User-friendly & easy due to clear and brief operation – operation interface
- Automatically save the test conditions & results

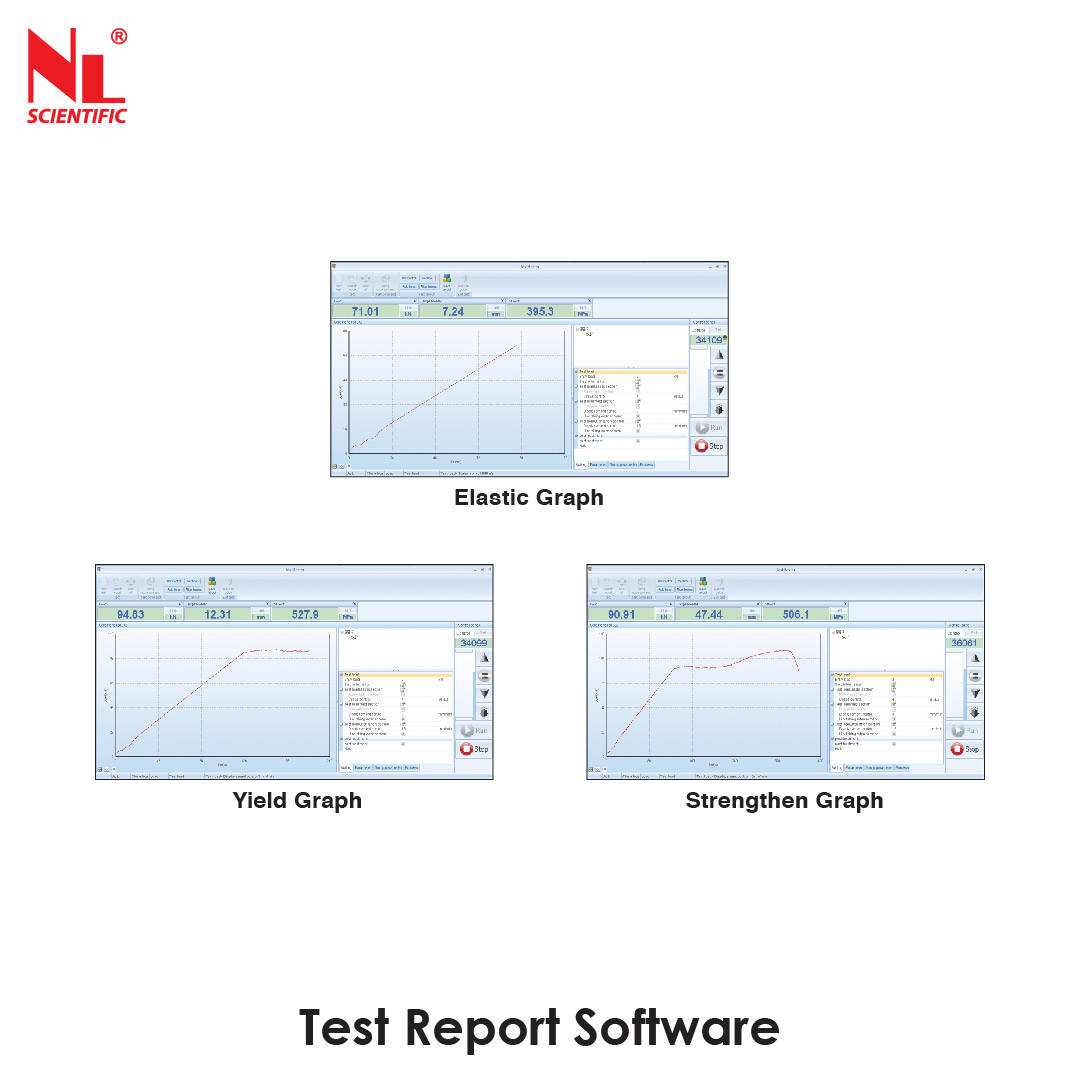

- User define test curves including Stress / Strain, Force / Elongation, and Strength / Time to suit various requirement
- Individual or combined display test curves on the same screen to compare with other several data at the same time
- Compatible with Microsoft Excel by import or export function
- The base of testing with digital sample break detection, auto ranging, auto-calibration, quick tare & auto return facilities
- The base of testing with digital sample break detection, auto ranging, auto-calibration, quick tare & auto return facilities
- Exceeds all International Standards for accuracy, ASTM, DIN, ISO, JIS, EN, GB…etc
- Tension, Compression, Shear, Cycling & Creep Test facilities
- User define Real Time Display Including Load, Stress, Elongation, Strain, Speed or Time
- Advanced protection features with software setting or / & hardware switch upper & lower limit setting
- Operation fully controlled by computer
- USB communication system & ethernet

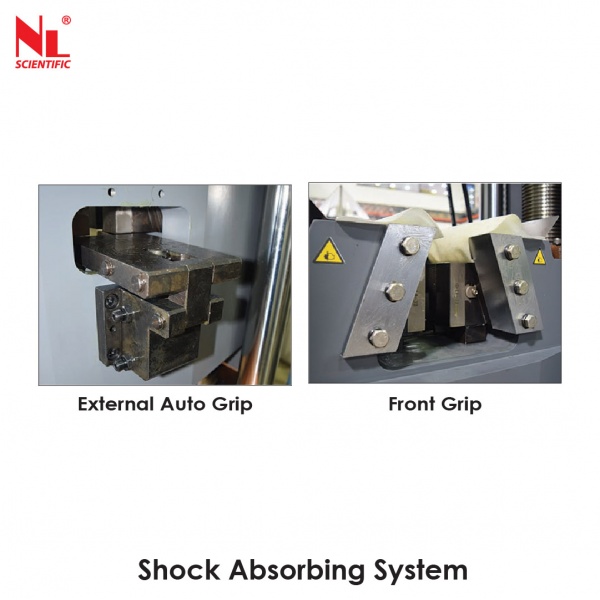

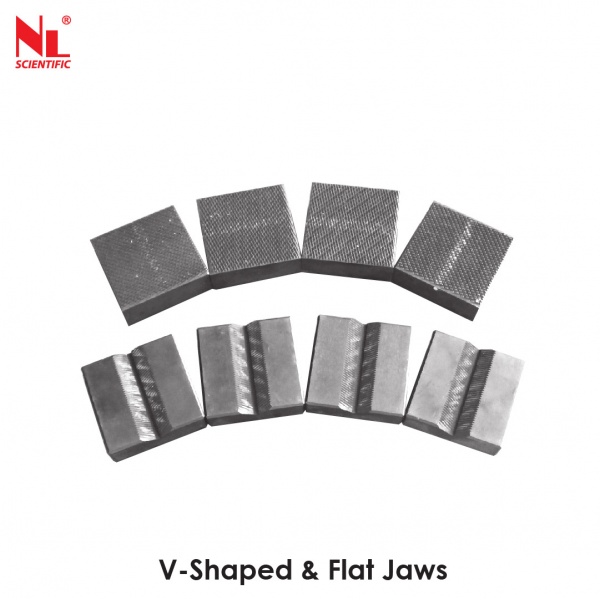

- Grips & fixtures for tension, compression, flexural, shear & product testing are available
- Fully user define report including Report Sheet, Label, Chart & Bitmap or JPG
- The report sheet consists of Load, Elongation, Yield, Break, Stress Modulus, Strain, Tear Strength, Peel Strength, etc
- Force display unit: kN, N, tons & mN
- Stress display unit: GPa, Mpa, Pa, psi, N/sq.mm, Kg/sq.mm & Tons/sq.inch
- User define Yield Strength, Young Modulus, Offset Setting, Graph Offset, Export & Import test data, …etc
